1920x1080 65 Inch High Brightness LCD Screen Android Restaurant Menu Display Board

Restaurants and Cafe Counters

This 65-inch HUAPU OD series LCD listing is configured for indoor restaurant and cafe digital menus. Present menu photography, prices and promotions above ordering counters in bright restaurants, coffee shops and tea stores.

Brightness is specified at 1000 cd/m² (1000 nit), with a 2000 cd/m² (2000 nit) option. Confirm the selected brightness in the quotation.

65-inch Full HD Display

The native 1920 x 1080 panel runs at 60 Hz. The supplied specification lists a 178° horizontal and vertical viewing angle and a typical contrast ratio of at least 1200:1.

The 65-inch size provides an active display area of 1428.48 x 803.52 mm. Screen content in the images is illustrative.

Android Content Playback

The RK3566 platform uses a quad-core Cortex-A55 CPU at 1.8 GHz and Arm Mali-G52 2EE graphics with Android 11. RAM options are 2 GB, 4 GB or 8 GB; storage options are 32 GB, 64 GB or 128 GB. These are selectable configurations rather than a single fixed memory specification.

The specification lists built-in Wi-Fi, scheduled power on/off, loop playback, split-screen layouts and remote publishing. Confirm the selected software package, network setup and any content-management license when ordering.

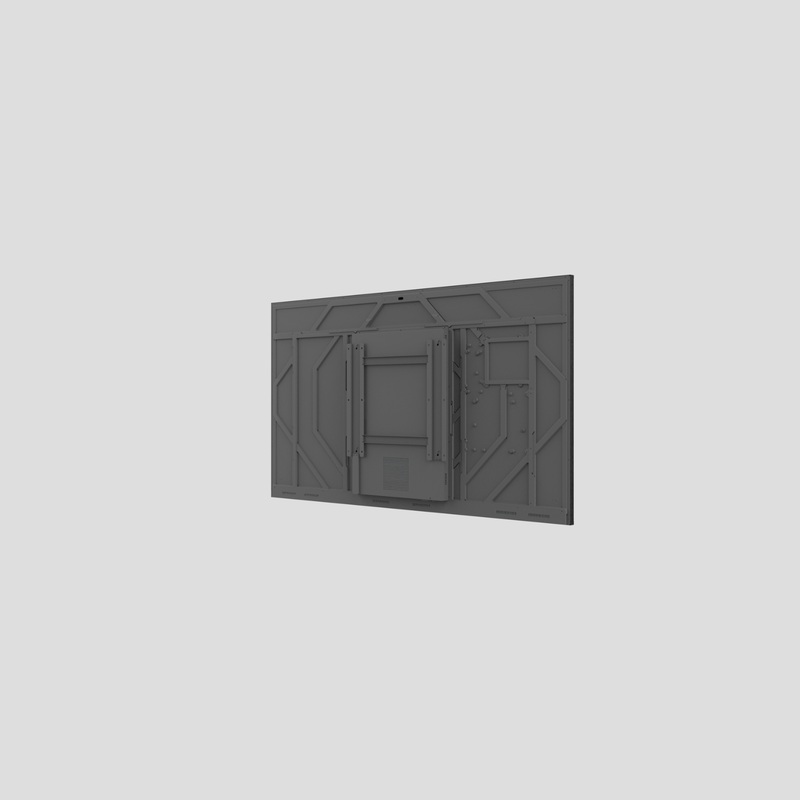

Installation and Rear Structure

The documented wall-mount hole spacing is 400 x 400 mm. Horizontal and vertical wall mounting are supported. The reference enclosure size from the product specification is 1454.5 x 829.5 x 57.5 mm (landscape W x H x D); the reference depth with wall bracket is 65.5 mm.

Dimensions are reference values from the supplied product specification. Confirm the final high-brightness configuration and approved mounting drawing before making recesses or mounting structures.

Enclosure and Connections

The enclosure uses an anodized brushed aluminum frame and a powder-coated metal rear panel. The specification describes active cooling. Keep ventilation openings and service access clear.

The listed motherboard ports are 2 x USB, 1 x TF card slot, 1 x audio output, 1 x RJ45, 1 x HDMI and 1 x DC. Power input is AC 100-240 V, 50/60 Hz. Audio uses two 5 W speakers. High-brightness power consumption is confirmed with the selected configuration.

Project Planning

Use scheduled content for breakfast, lunch and evening menus. Keep prices readable at the ordering position and confirm the content-management setup for menu changes across multiple locations.

For indoor use. Brightness alone does not define performance under direct sunlight: assess reflections, glass characteristics and solar heat for window-facing installations. No outdoor weatherproof enclosure or anti-glare coating is implied.

Street-Facing Shop Windows

Present promotional posters, seasonal collections and brand video to pedestrians from inside a street-facing glass shopfront.

Premium Retail and Showrooms

Show jewelry details, fashion collections and automotive campaign content in boutiques and showrooms with strong accent lighting.

Bright Indoor Transit Halls

Display passenger guidance, gate directions and service notices in indoor airport, railway and metro areas with extensive glazing.

Shopping Mall Atriums

Show brand campaigns and event announcements along naturally lit mall corridors and beneath glazed atrium roofs.

Operating Conditions and Supply Scope

The supplied specification lists an operating temperature of -10°C to +50°C and humidity of 10% to 90% RH. High-brightness and sun-exposed installation conditions should be confirmed for the project.

Reference net weight is 19 kg; reference carton size is 1580 x 985 x 150 mm. Final weight and packaging may vary with the high-brightness configuration. The listed standard accessories are one power cable, one wall bracket, one remote control and one user manual. Confirm the final shipment scope in the quotation.

Custom R&D and Technical Support

A professional R&D team supports custom display design, prototype testing and OEM/ODM requirements. An ISO 9001-certified quality management system supports production control and testing. Online after-sales service and technical support are available 24/7.

Application images are concept visualizations shared across the OD product family. Refer to the size-specific product view and confirmed mechanical drawing for the actual enclosure.

Specifications

Frequently Asked Questions

Is 2000 nit included as standard?

This listing specifies 1000 nit brightness, with 2000 nit available as an option. Confirm the chosen configuration and price before ordering.

Is this display 4K?

This 65-inch model is listed with native 1920 x 1080 Full HD resolution according to the supplied product specification.

Which memory configuration is supplied?

RAM and storage are options. Select the required RAM and storage combination in the quotation; no single combination is assumed.

Can it be installed outside?

The documented product is an indoor wall-mounted LCD. Window-facing use places the monitor indoors behind glass and requires a review of sunlight, heat and ventilation. No outdoor IP rating is specified.

Are remote software and installation accessories included?

Remote publishing is a listed product function. Software package, licenses, network requirements and any special hanging hardware are confirmed for the order.

Request a Project Quotation

Send the required 65-inch quantity, 1000 or 2000 nit brightness selection, memory configuration and indoor restaurant and cafe digital menus installation details for a project quotation.
